Air supply: 70~100 PSI (5~8 Bar)
Air consumption: 180 L/min
Vacuum (Max.): 500 mmHG
Reservoir capacity: 10 L
Extraction rate: 2.5 L/min
Air inlet size: 1/4" BSP

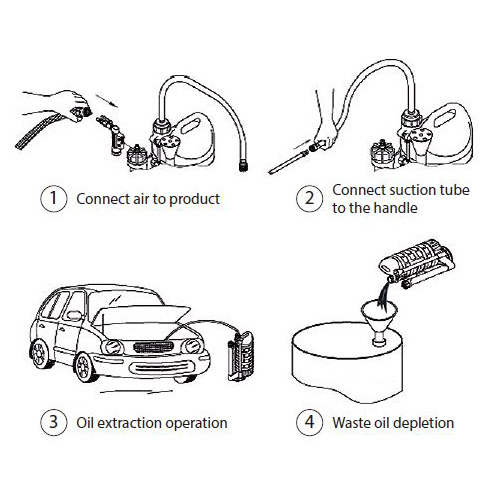

Open the air switch to begin the extraction. Close the air switch to stop extracting the fluid. The fluid extractor can be used to drain brake fluid, waste oil from the sump (down the dipstick tube), other automotive applications and pick up non corrosive spillage.

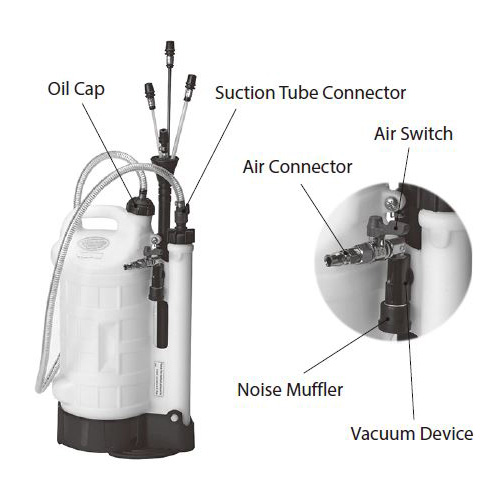

A: 6 mm steel oil suction tubeB: 3/8" gear oil tubeC: suction hose for brake fluid 5x8 mmD: 6 mm oil suction tube for motorbikeE: 5/16" oil suction tube for motorbike
