VOLVO T4/T5 Timing Tools Set
TATHT8810
Item Description
Develop specifically for 1.6 direct injection petrol engine fitted with variable valve timing(VVT) and found in both Ford and Volvo range.
To adjust and fix the angle of the camshaft and the crankshaft.

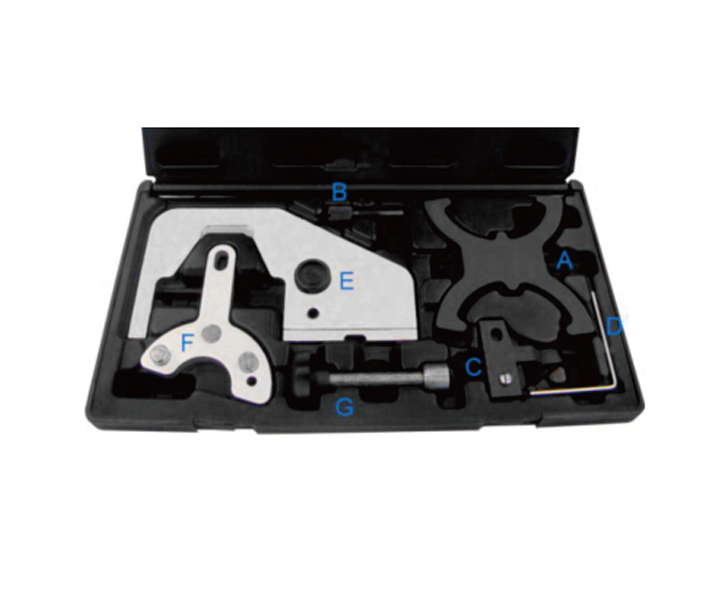

| Item | Description | OEM Ford | OEM Volvo | OEM Mazda |
| A | Camshaft sprocket Locking Tool | 303-1097 | 999-7429 | |
| B | Camshaft Locking Pin | 303-748 | 999-7406 | 303-507 |
| C | Camshaft Pulley Alignment Tool | 303-1550 | 999-7431/303-1550 | |
| D | Tensioner Pin 2 mm | 303-1054 | | |
| E | Camshaft Alignment Plate Up to May 2011 | 303-1504 | 999-7405 | |
| F | Camshaft Pulley Alignment Plate | | | 205-072 |
| G | Camshaft Pulley Alignment Tool | | 999-7415 | |
| Manufacture | Mode | Type | Engine Code | Year |
| Ford | B-MAX | 1.6 | IQJA | 2012 |
| C-AMX | 1.6 | JQDA | 2010 |
| C-AMX | 1.6 | JQDB | 2010 |
| C-AMX | 1.6 | JTDA | 2010 |
| C-AMX | 1.6 | JTDB | 2010 |
| Focus | 1.6 | JQDA | 2011 |
| Focus | 1.6 | JQDB | 2011 |
| Focus | 1.6 | JTDA | 2011 |
| Focus | 1.6 | JTDB | 2011 |
| Galaxy | 1.6 | JTWA | 2010 |
| Galaxy | 1.6 | JTWB | 2010 |
| Grand C-MAX | 1.6 | JQDA | 2010 |
| Grand C-MAX | 1.6 | JQDB | 2011 |
| Grand C-MAX | 1.6 | JTDA | 2010 |
| Grand C-MAX | 1.6 | JTDB | 2011 |
| Mondeo | 1.6 | JTBA | 2010 |
| Mondeo | 1.6 | JTBB | 2010 |
| S-MAX | 1.6 | JTWA | 2010 |
| S-MAX | 1.6 | JTWB | 2010 |
| Volvo | S-MAX | 1.6 | B4164T3 | 2010 |
| S-MAX | 1.6 | B4164T | 2010 |
| S-MAX | 1.6 | B4164T2 | 2010 |
| S80 | 1.6 | B4164T | 2010 |
| S80 | 1.6 | B4164T2 | 2011 |
| V60 | 1.6 | B4164T3 | 2011 |
| V60 | 1.6 | B4164T | 2011 |
| V60 | 1.6 | B4164T2 | 2010 |
| V70 | 1.6 | B4164T | 2010 |
| V70 | 1.6 | B4164T2 | 2011 |
